HPTLC ATLAS



Botanical Information Angelica dahurica (Hoffm.) Benth. & Hook.f. ex Franch. & Sav.

Synonyms Angelica dahurica var. pai-chi Kimura
Angelica glabra (Y.Yabe) Makino
Angelica macrocarpa H.Wolff Repert.
Angelica porphyrocaulis Nakai & Kitag.
Angelica porphyrocaulis f. latisecta Kitag.
Angelica pubescens var. glabra Y.Yabe
Angelica tschiliensis H.Wolff
Callisace dahurica Hoffm.
Thysselinum davuricum (Hoffm.) Spreng.
Common name (en) Dahurian angelica
Common name (de) Sibirische Engelwurz
Common name (fr) Angélique dahurica
Common name (ko) 구릿대
Common name (th) แปะจี้
Common name (vi) Bạch chỉ
Common name (zh) 白芷

Sample preparation Mix 1.0 g of powdered sample with 5.0 mL of methanol and shake for 10 min, then centrifuge the solution and use the supernatant as test solution
Mobile phase Toluene, ethyl acetate, acetic acid 90:10: 1 (v/v/v)
Derivatization Spray with 10% sulfuric acid in methanol, then heat the plate at 100°C for 3 min
System Suitability Test (SST) Under UV 366 nm prior to derivatization
  • Imperatorin: green fluorescent zone RF ~ 0.33
  • Osthole: blue fluorescent zone RF ~ 0.38
  • Isoimperatorin: green fluorescent zone RF ~ 0.44

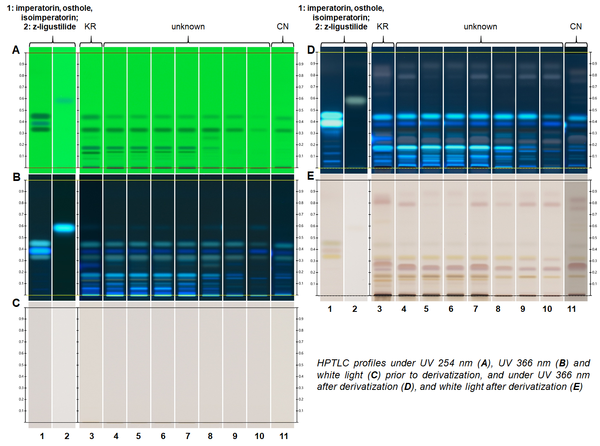

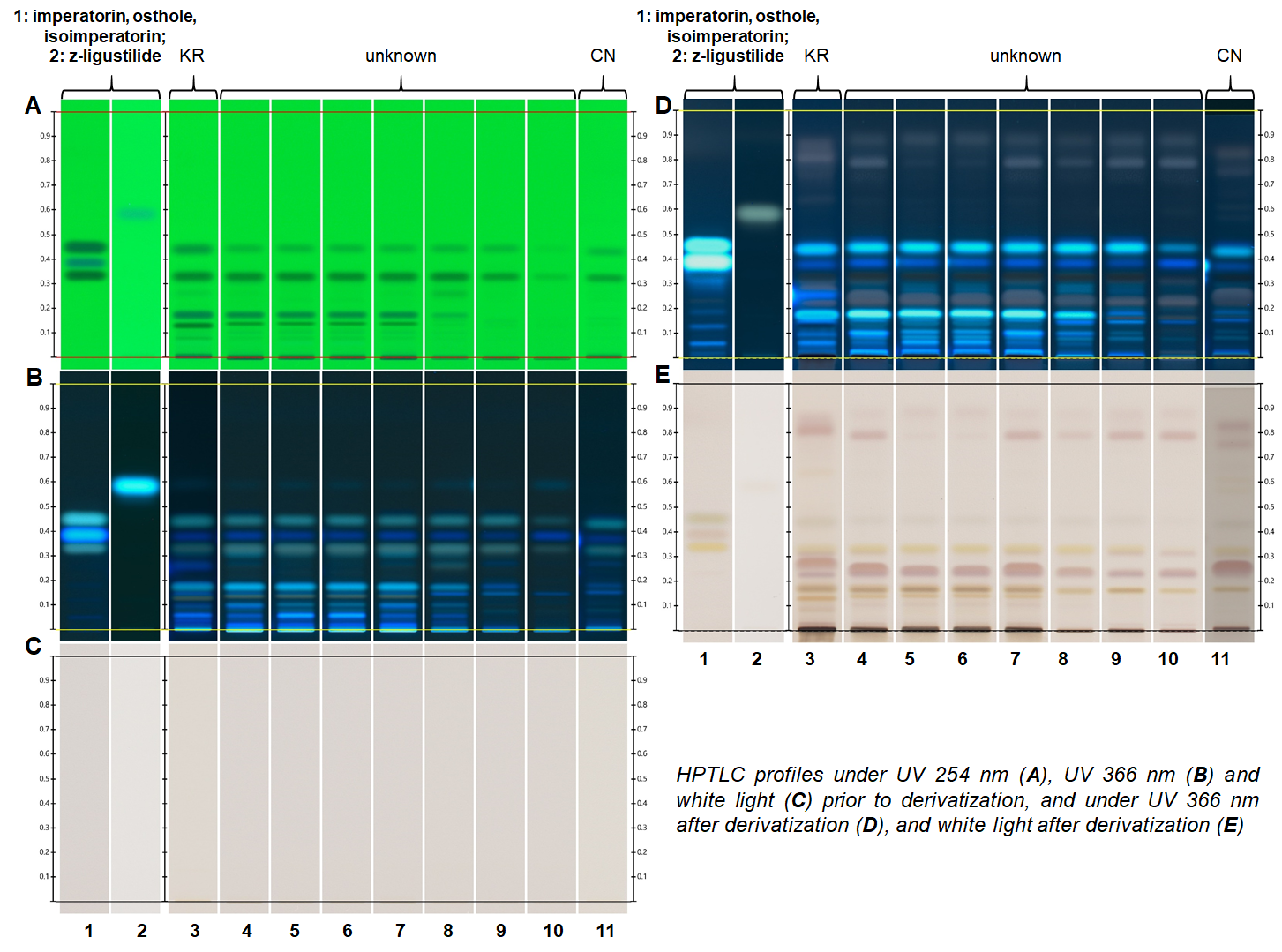

HPTLC Chromatograms (different origin(s))

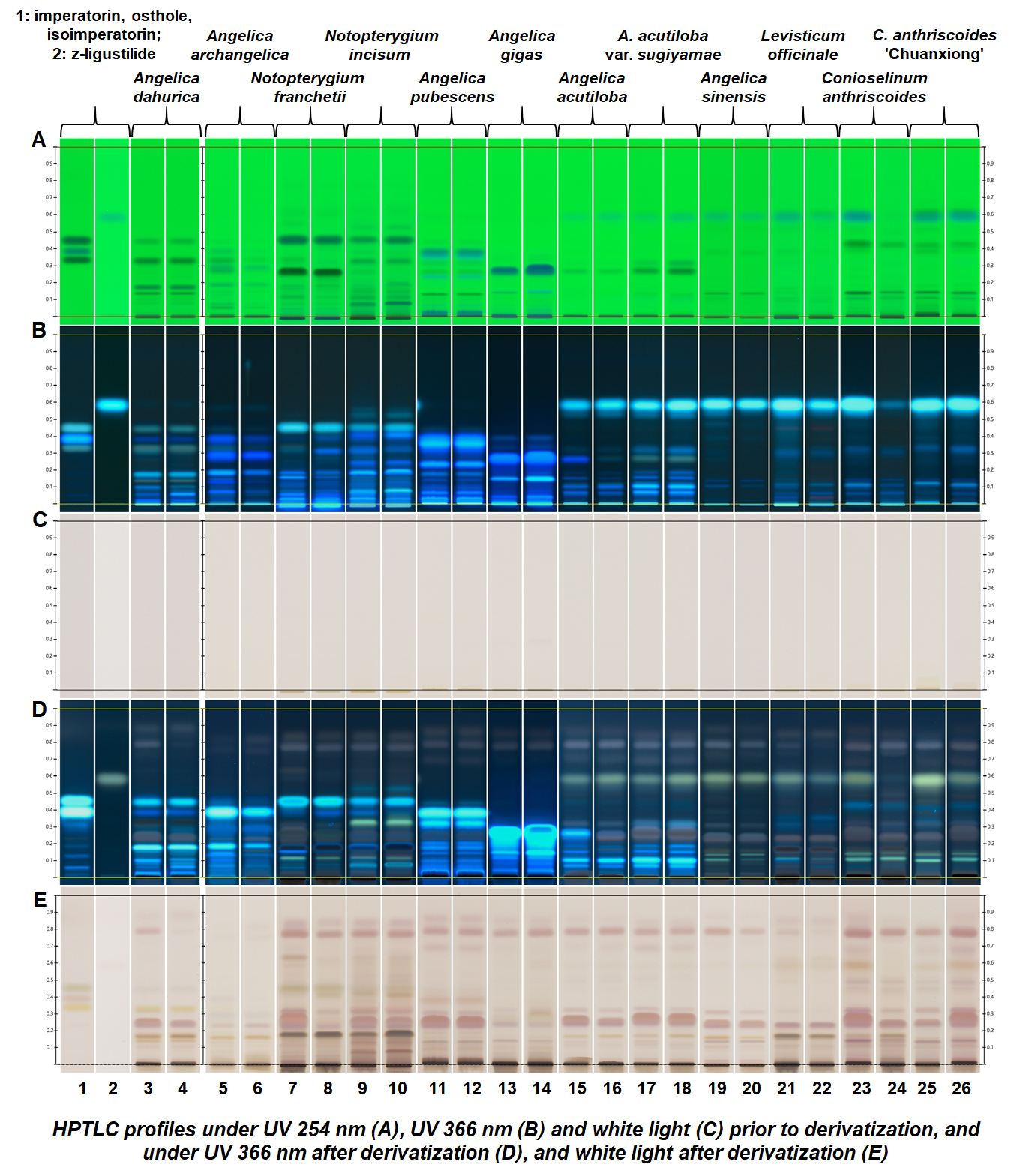

HPTLC Chromatograms (related drug(s))
ATLAS documents ATLAS Method document
Image comparison of Angelica dahurica
Image comparison of Angelica dahutrica and related herbal drugs
visionCATS data (CAMAG software)
